Spheroidal Graphite Cast Iron Sand Casting

Spheroidal Graphite Cast Iron Sand Casting

Material: Ductile Cast Iron, Spheroidal Graphite Cast Iron
Process: Sand Casting
Weight: 8.80 kg
Application: Machinery Parts

OEM custom sand casting of ductile cast iron from China sand casting foundry.

Description


Ductile cast iron, which is also called nodular cast iron, spheroidal graphite cast iron or just SG iron for short, represent a group of cast iron. Nodular cast iron obtains nodular graphite through spheroidization and inoculation treatment, which effectively improves the mechanical properties of the cast iron, especially the plasticity and toughness, so as to obtain higher strength than carbon steel.

Ductile iron castings have better shock absorption performance than carbon steel, while carbon steel castings have much better weldability. And to some extent, the ductile iorn castings could have some performances of resistanting wear and rust. So the ductile iron casting could be used for some pump housings or water supply systems. However, we still need to make precautions for protecting them from wearing and rust.

Ductile iron is not a single material but is part of a group of materials which can be produced to have a wide range of properties through control of the microstructure. The common defining characteristic of this group of materials is the shape of the graphite. In ductile irons, the graphite is in the form of nodules rather than flakes as it is in grey iron. The sharp shape of the flakes of graphite create stress concentration points within the metal matrix and the rounded shape of the nodules less so, thus inhibiting the creation of cracks and providing the enhanced ductility that gives the alloy its name. So generally speaking, if the ductile iron could meet your requirements, the ductile iron could be your first choice, instead of carbon steel for your castings.


nodular grade of ductile cast iron

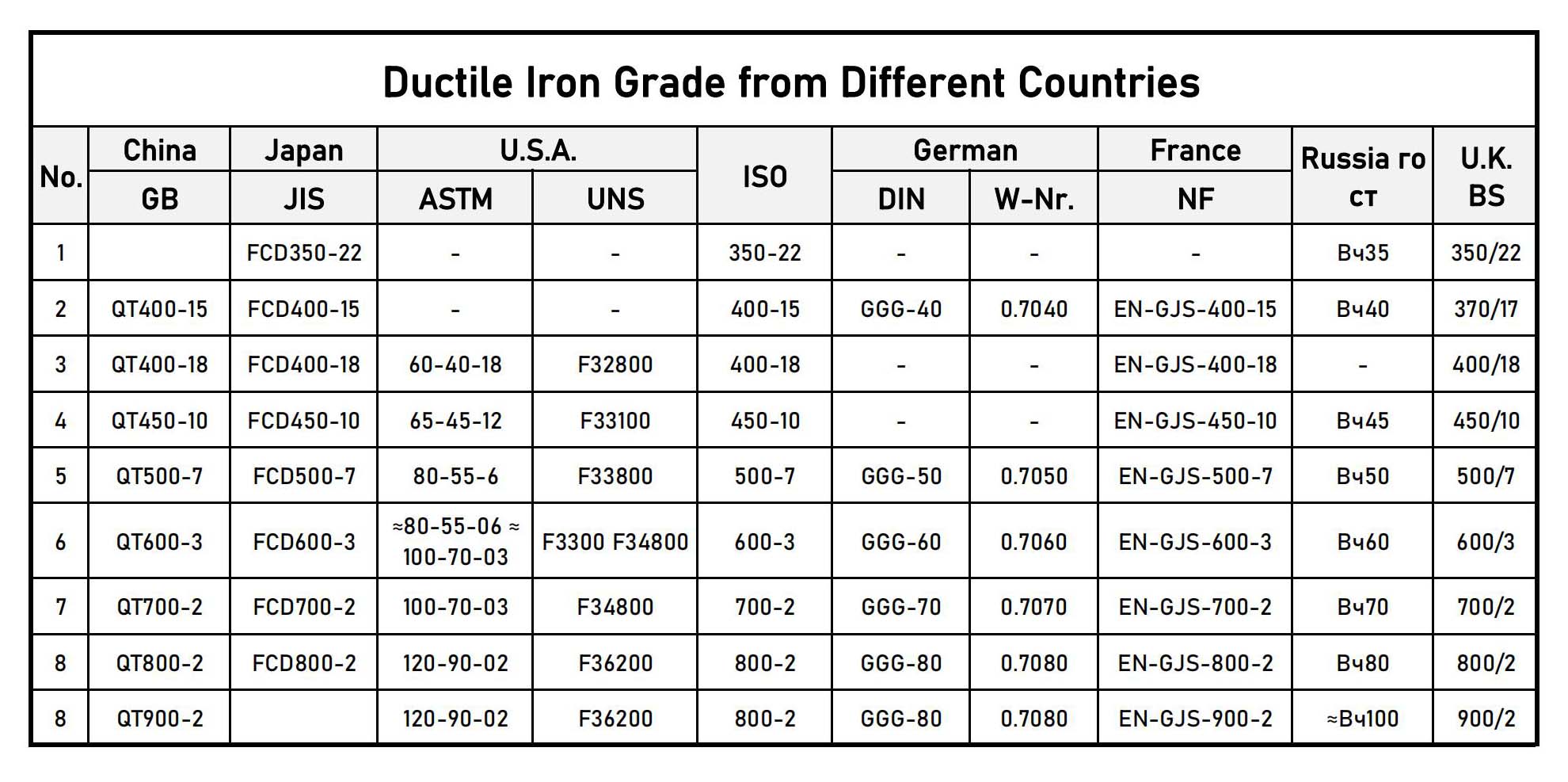

Ductile Cast Iron Grade
